1500 Volt Solar String Fuse, Holder Rated 35 to 60 Amperage


New solar fuse and holder offer higher amperage with fault currents up to 50 kA

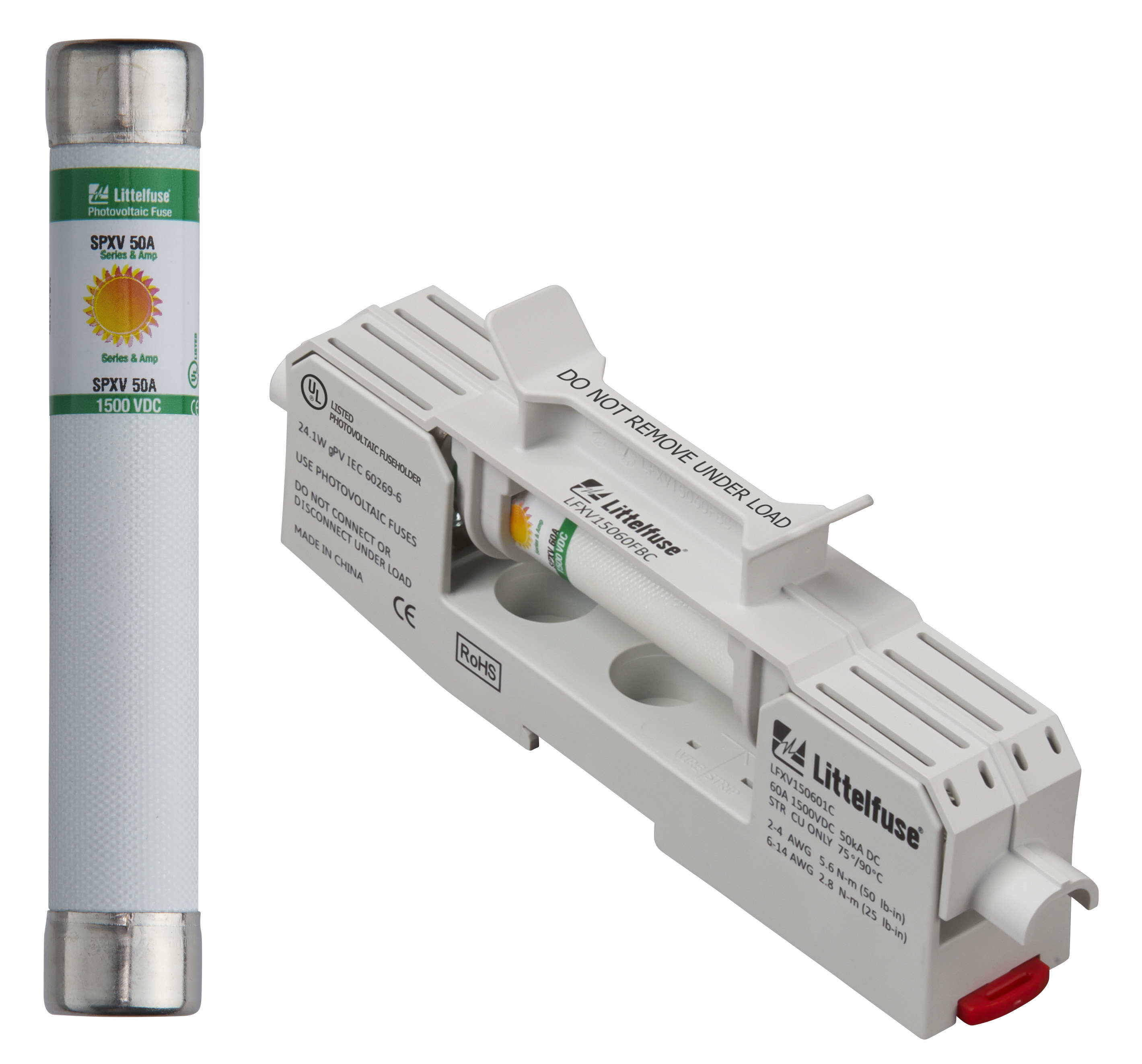

Littelfuse, Inc., announced the expansion of its SPXV series solar string fuses to include 35 to 60 amperage models. Designed to integrate into an LFXV15 fuse block and cover holder, these 20 x 127 mm 1500 V DC solar fuses protect photovoltaic (PV) installations from overloads and short circuits to minimize damage to solar panels.

Other key benefits of the 35 to 60 amperage solar SPXV series solar fuses include:

  • Higher amperage protection in less space for increased design flexibility
  • Full range, fast-acting properties to help protect against common low-overload and short-circuit faults
  • Meets UL 248-19 and IEC 60269-6 photovoltaic fuse standard requirements
  • Product labels with QR codes offering real-time access to part numbers, voltage, programming terms, and date codes to save time with product replacements and inventorying

LFXV15 series fuse block and cover holder benefits include:

  • A dead-front cover that offers personnel protection
  • Ventilated design to keep fuse running cooler, even at high ambient temperatures and current ratings, to increase fuse longevity
  • Narrower width to accommodate more blocks in a panel to maximize space
  • Easy fuse removal and replacement to minimize maintenance time. No tools required.
  • 35 mm DIN-rail mounting option for quick assembly and installation
  • Compatibility with Littelfuse SPXV 20 x 127 mm solar fuses rated 35-60 amperes

For more product information visit Littelfuse's site.
