3 kV rms Signal and Power Isolated CAN Transceiver

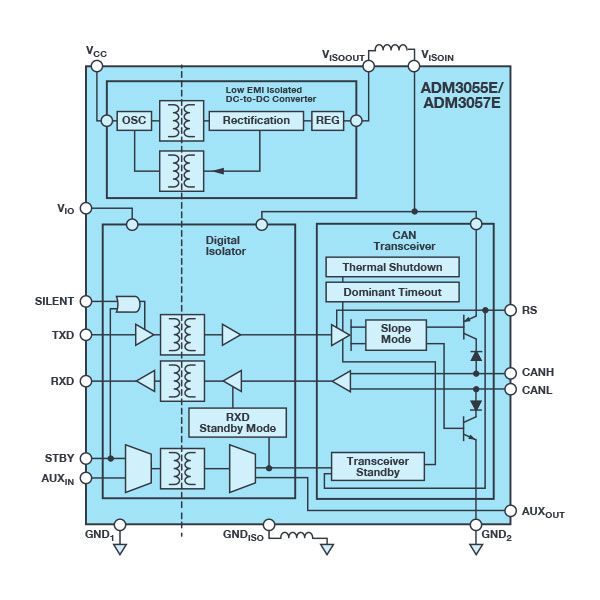

The ADM3057E is a 3 kV rms isolated controller area network (CAN) physical layer transceiver with an integrated, isolated dc-to-dc converter. The ADM3057E meets flexible data rate (CAN FD) requirements for operation to 5 Mbps and higher and complies with the ISO 11898-2: 2016 standard. The ADM3057E can support data rates as high as 12 Mbps.

Key Features

• 3 kV rms signal and power isolated CAN transceivers
• isoPower integrated isolated dc-to-dc converter
• VIO pin for 1.7 V to 5.5 V logic levels
• ISO 11898-2:2016 compliant (CAN FD)
• Data rates up to 12 Mbps for CAN FD
