Developing a Wireless BMS Production Test Solution

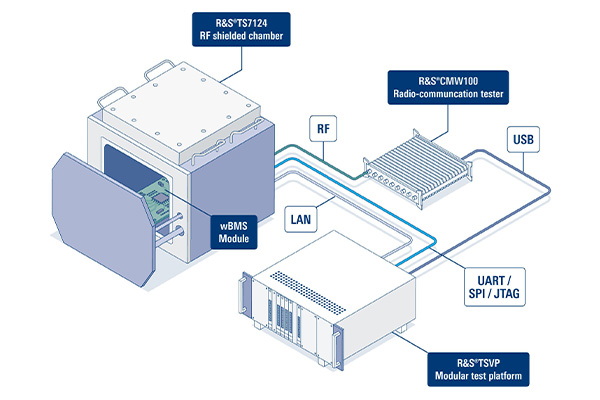

Rohde & Schwarz, together with ADI, has developed an ultra-compact automated test equipment (ATE) system for wireless battery management systems (wBMS). With this test setup, the necessary wBMS module calibration, receiver, transmitter and DC tests can be conducted fast and executed reliably for verification in the lab as well as for production tests for high yield. It consists of the R&S CMW100 radio communication tester, the R&S WMT wireless automated testing software framework, and the new R&S ExpressTSVP universal test and measurement platform. Due to radiated test, the device under test (DUT) is placed in an interference-free environment such as the R&S TS7124 RF shielded box. For RF robustness testing, Rohde &Schwarz and ADI worked together to get an off-the-air recording solution to capture real-world RF spectrum. They then played it back in the lab to confirm the correct operation of wBMS in demanding RF environments. This solution from Rohde & Schwarz allows a realistic, repeatable, and efficient verification of wireless devices. During several test drives in various complex RF environments, an R&S FSW signal and spectrum analyzer monitored the RF spectrum and sent it to an R&S IQW wideband I/Q data recorder. For playing back the recorded spectrum profiles in a lab, the R&S IQW is connected to an R&S SMW200A vector signal generator. From the development lab to the production line, Rohde & Schwarz offers a comprehensive portfolio of test solutions for wBMS.
