Practical control measurements for the Sepic converter - Part III

Author:
Dr. Ray Ridley, Ridley Engineering

Date
12/30/2014

 PDF
porn porntube
Current-Mode Designs

Sepic Converter with Voltage-Mode Control

This article shows the measured characteristics of Sepic converter using current-mode control, either with a coupled inductor or separate inductors. In the last article of this series, the coupled-inductor Sepic was examined.

It was shown that coupling the two inductors on the same core leads to much better-behaved transfer functions when voltage-mode control was used. The coupling of the inductors, whether loosely or with very little leakage, eliminated the troublesome second-resonance characteristics and complex RHP zeros. Figure 1 shows the schematic of the Sepic converter with voltage-mode control.

Click image to enlarge

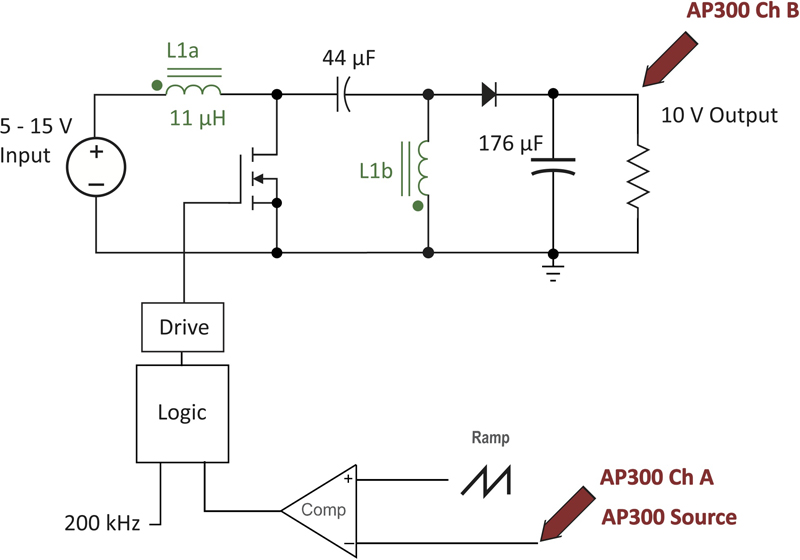

Figure 1: Voltage-Mode Coupled-Inductor Sepic Converter Circuit

The AP300 analyzer [2,3] was used to inject a test signal into the converter, and measure the gain and phase response from input to output. In Figure 2, the range of transfer functions for the coupled-inductor Sepic is shown.

Clcik image to enlarge

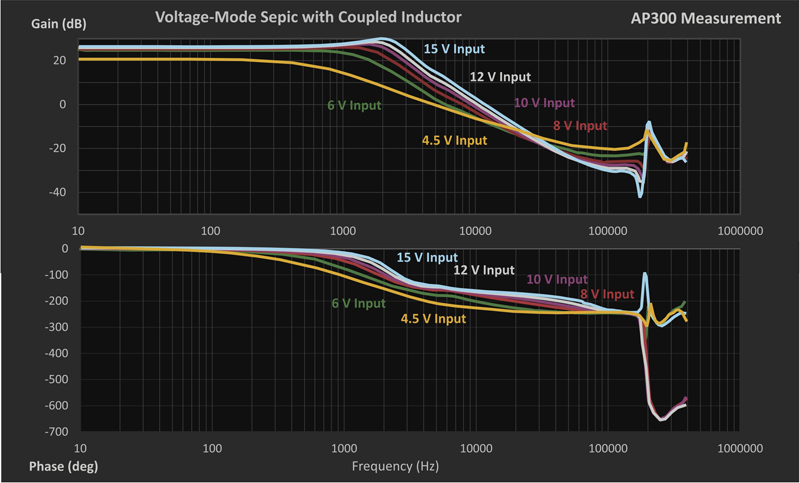

Figure 2: Voltage-mode Transfer Functions with Coupled Inductors

With coupled inductors, there is no indication of a second resonance or the complex RHP zeros characteristic of the Sepic operating at low line. However, there is a still a moving first resonance and a moving real RHP zero. This is very similar to the boost and flyback converters operating in CCM.

Sepic converter with current-mode control

Figure 3 shows the Sepic schematic with current-mode control. A current transformer in series with the power FET is used to generate a signal proportional to the current, and this is fed into the PWM comparator along with a compensating ramp. The compensating ramp is needed to prevent subharmonic oscillations, as discussed in [7].

Click image to enlarge

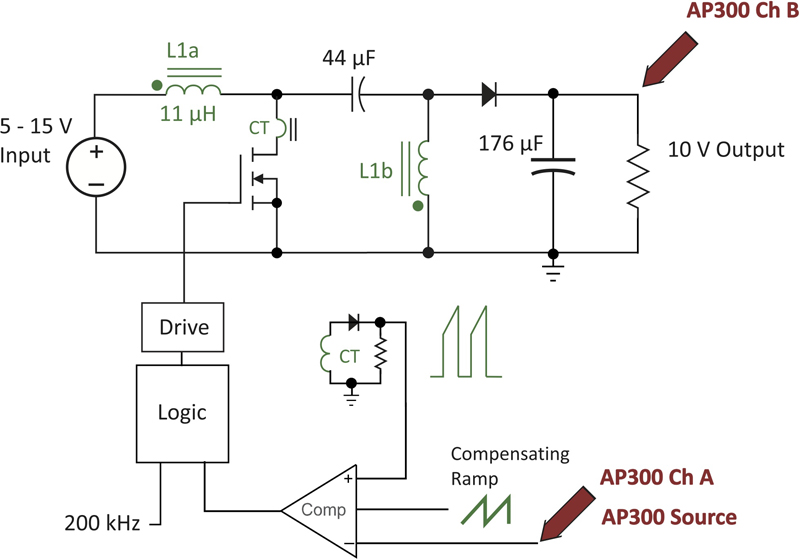

Figure 3: Current-Mode Coupled-Inductor Sepic Converter Circuit

The transfer function from control to output of the converter was measured with an AP300 with the current loop closed. The results of these measurements are shown in Figure 4.

Click image to enlarge

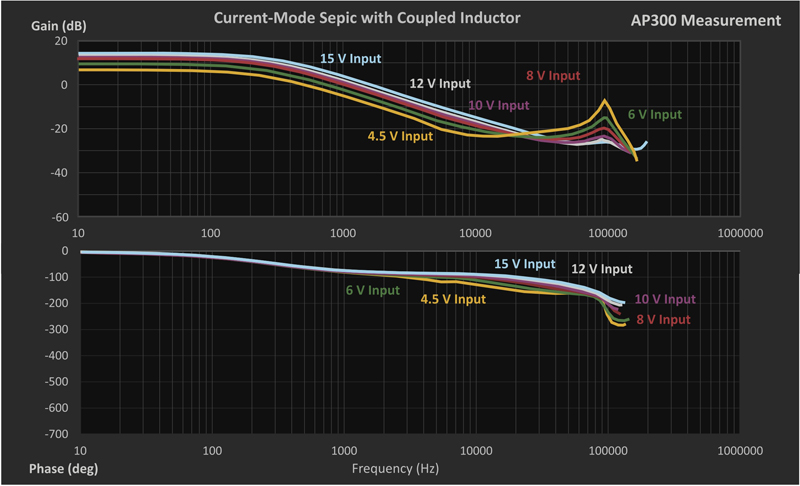

Figure 4: Current-Mode Transfer Functions for Coupled-Inductor Sepic

Comparing the measured responses for current-mode control in Figure 4, and voltage-mode control in Figure 2, the beneficial effects of current mode can clearly be seen. The moving double pole at 2 kHz is eliminated with current-mode control, and replaced with a single dominant pole at a few hundred Hz.

When large duty cycles occur at low line (gold curve), the peaking of an additional pair of double poles at half the switching frequency is apparent. This is a common characteristic of all converters with current-mode control [7].

The single real RHP zero of the converter is retained with current-mode, and its location is unchanged from the voltage-mode converter. This zero is apparent in the lowest line measurement on the converter.

Current-mode control with separate inductors

As a final test, the Sepic converter with two separate inductors was run with current-mode control. This was done to verify that coupling the inductors is a crucial step to making this converter stable over a wide range, even if you are using current-mode. The results of the measurements are shown in Figure 5.

Clcik image to enlarge

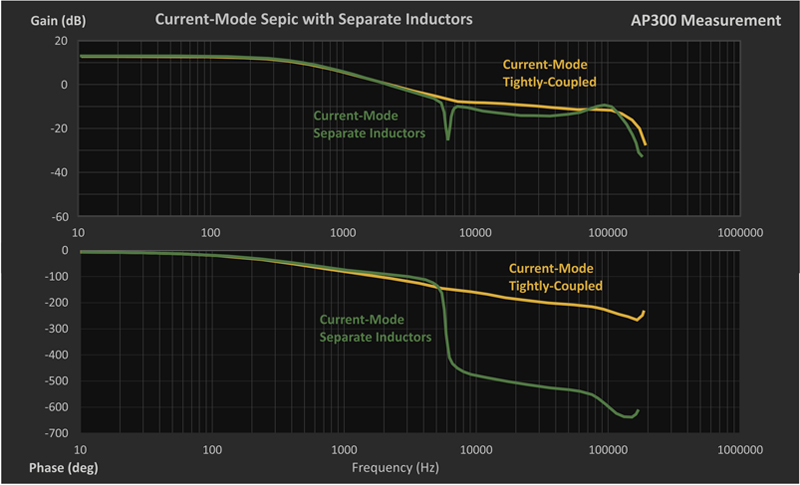

Figure 5: Current-Mode Transfer Function with Separate Inductors

In this figure, the separate inductor measurements are shown in green. The measurements were made at low line, and the second resonance and RHP zeros are apparent. Current-mode control does nothing to change the second resonance characteristics. The vast improvement with coupled inductors is shown by the gold curve in Figure 5.

Considerations

Current-mode control has a strong beneficial effect on the control characteristics of a Sepic converter. The first filter moving resonance of voltage-mode control is transformed into a dominant single pole. As with all current-mode converters, an additional pair of double poles at half the switching frequency need to be damped with a compensating ramp to avoid subharmonic oscillations.

Even when using current-mode control, it is recommended that the inductors of the converter be wound on the same core to eliminate the second resonance characteristics. The choice of tight or loose coupling can be determined by the desired effect on the inductor ripple currents without worrying about the transfer functions.

If you are contemplating digital control of the Sepic converter, it is an essential step to first couple the inductors, then apply current-mode before implementing digital compensation. The nasty transfer functions of the voltage-mode control with separate inductors cannot be solved with digital algorithms, however complex they may be.

Finally, measurements are essential on these converters. Do not neglect this important step. There are still variable characteristics in current-mode, which must be verified on the practical hardware.
