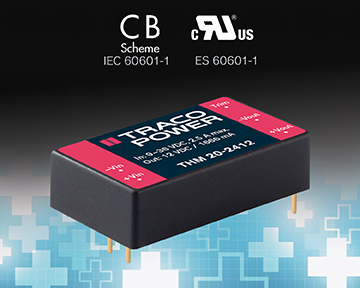

TRACO POWER has announced the release of their THM 20 family of medical 20 Watt DC/DC converters with a wide 2:1 input range in a 1.0 x 1.6 x 0.40” footprint. The THM 20 series are a reliable solution not only for medical equipment but also for demanding ITE applications such as transportation, control & measurement or IGBT drivers.
These 20 Watt DC-DC converters provide high isolation of 5,000 VACrms (250 VACrms working voltage) with reinforced insulation and low leakage < 2.5uA. All models are certified to ANSI/AAMI ES 60601-1:2005/(R) 2012 3rd Edition for 2xMOPP compliance and are suitable for B & BF rated applications. The series consists of 21 models offering 9~18 / 18~36 / 36~75 Vin and outputs of 5 / 12 / 15 / 24 / ±5 / ±12 / ±15 V. Features include: extended -40 to +80C operating temperature range (full power to +55C); efficiencies up to 90%; +/- 10% voltage trim range; EMC compliance to IEC60601-1 4th edition and EN55032 Class A; operating altitude up to 5000m; under-voltage lock-out; overload protection; and short-circuit protection. These mission critical products are designed and produced according to ISO 13485 Quality Management System, are supported with a Risk management process according to ISO 14971 and manufactured according to IPC-A-610 Level 3 standards and backed by a warranty of 5 Years.
These 20 Watt DC-DC converters provide high isolation of 5,000 VACrms (250 VACrms working voltage) with reinforced insulation and low leakage < 2.5uA. All models are certified to ANSI/AAMI ES 60601-1:2005/(R) 2012 3rd Edition for 2xMOPP compliance and are suitable for B & BF rated applications. The series consists of 21 models offering 9~18 / 18~36 / 36~75 Vin and outputs of 5 / 12 / 15 / 24 / ±5 / ±12 / ±15 V. Features include: extended -40 to +80C operating temperature range (full power to +55C); efficiencies up to 90%; +/- 10% voltage trim range; EMC compliance to IEC60601-1 4th edition and EN55032 Class A; operating altitude up to 5000m; under-voltage lock-out; overload protection; and short-circuit protection. These mission critical products are designed and produced according to ISO 13485 Quality Management System, are supported with a Risk management process according to ISO 14971 and manufactured according to IPC-A-610 Level 3 standards and backed by a warranty of 5 Years.
