Vincotech’s SiC-mosfet power modules target solar, ups, and battery management applications


porn porntube

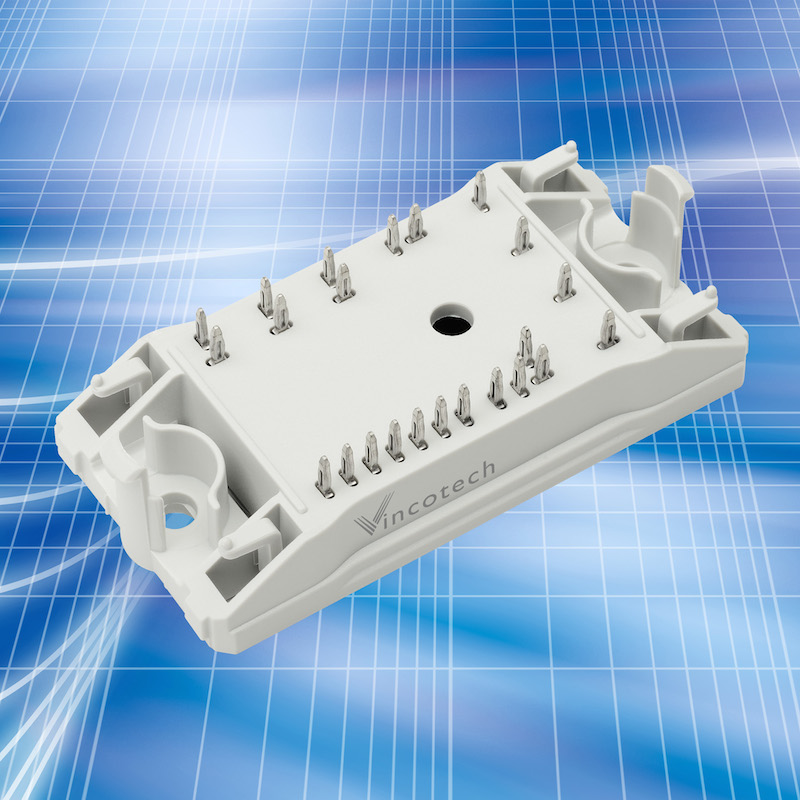

Vincotech SiC MOSFET-based power module

Vincotech, a supplier of module-based solutions for power electronics, has rolled out next-generation SiC-based products for ultra efficient, high-frequency operation in solar inverter, UPS, and battery management applications. This generation of SiC MOSFET-based power modules comes in two versions. One is a flow3xPHASE 0 SiC three-phase inverter module with 3x BUCK/BOOST and split output topology; the other is the flow3xBOOST 0 SiC with three-channel boost circuits.

Both modules feature the latest generation of SiC MOSFET switches designed for ultra fast switching frequencies >100 kHz. They are able to achieve >99 % peak efficiency at fPWM = 64 kHz. Equipped with integrated DC capacitors, these new flow 0 SiC modules provide ultra-low inductance.

The flow3xPHASE 0 SiC and the flow3xBOOST 0 SiC modules come in low-inductive, 12 mm flow 0 housings with Press-fit pins. Samples of these modules may be sourced on demand from our usual channels.

Vincotech SiC MOSFET-based power modules
