Resistors Designed for High-Voltage Handling

Date
07/18/2019

 PDF

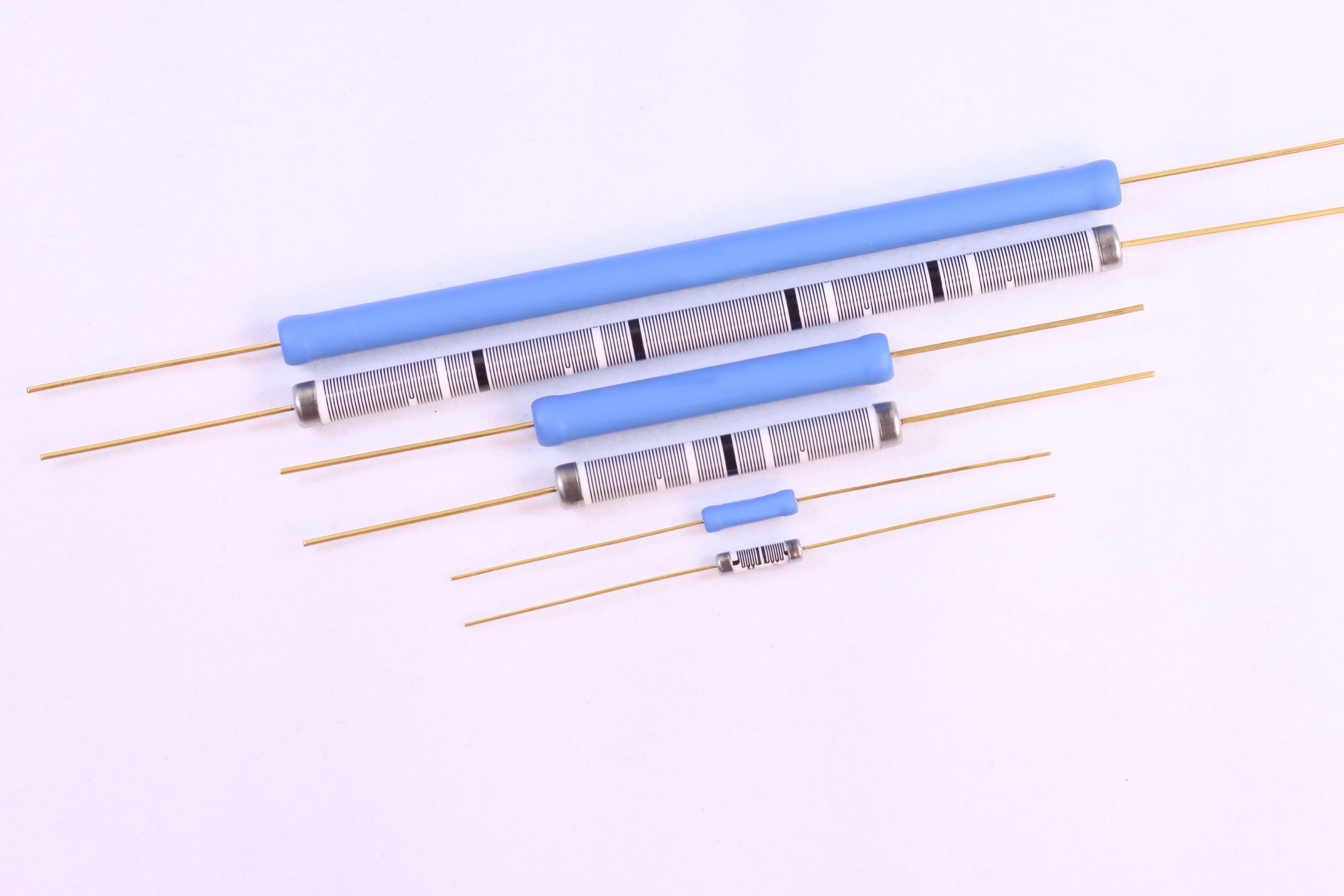

RALEIGH, NC – Stackpole is now stocking 10M, 100M, 500M, 1G, and 10G ohm values of its HVAM axial leaded precision resistors. These resistors are designed for high voltage handling and high resistance values with power ratings from 2W to 10W. The proprietary direct film deposition of the HVAM enables tolerances down to 0.1% and TCR as low as ±50 ppm while offering exceptionally high voltage ratings as follows:

*HVAM20 2W power rating at up to 15KV
*HVAM36 3.6W power rating at up to 15KV
*HVAM50 5W power rating at up to 20KV
*HVAM75 7.5W power rating at up to 30KV
*HVAM100 10W power rating at up to 50KV

The precision high voltage HVAM is a great choice for a wide range of medical applications, circuit protection, voltage dividers, welding and plasma cutting equipment, and high-voltage power supplies.

Pricing for the HVAM depends on size, resistance value, tolerance, and TCR. Contact Stackpole or one of our franchised distributors for specific pricing.

For more information about Stackpole products,
visit the website at www.seielect.com.
