TI’s 15W Qi-certified bq501210 wireless power transmitter now at Mouser

Date
08/17/2016

 PDF

Texas Instruments 15W Qi-Certified bq501210 Wireless Power Transmitter

Mouser Electronics is now stocking the bq501210 wireless power transmitter from Texas Instruments. The industry's first Wireless Power Consortium (WPC) v1.2 Qi-certified 15W wireless power transmitter, the bq501210 enables 84 percent system efficiency with significantly less thermal dissipation than traditional wireless power devices. The transmitter supports multiple fast-charging protocols, operates with any Qi WPC v1.1 receiver, and offers an array of flexible and customizable features such as personal electronics, medical, and space-constrained industrial applications.

TI’s bq501210 wireless power transmitter, available from Mouser Electronics, is an intelligent device that periodically pings the surrounding environment for available devices to be powered, detects if a foreign metal object is present on the charging pad, monitors all communication from the device being wirelessly powered, and adjusts power applied to the transmitter coil per feedback received from the powered device.

It includes a 5V full-bridge power stage and manages the fault conditions associated with the power transfer and controls the operating mode status indicator. The bq501210 delivers up to 15W continuous power into a Qi-compliant type MP-A5 transmitter coil, is backward compatible with existing 5W WPC receivers, and uses a rail voltage control scheme instead of the traditional frequency control to adjust the amount of power delivered to the receiver.

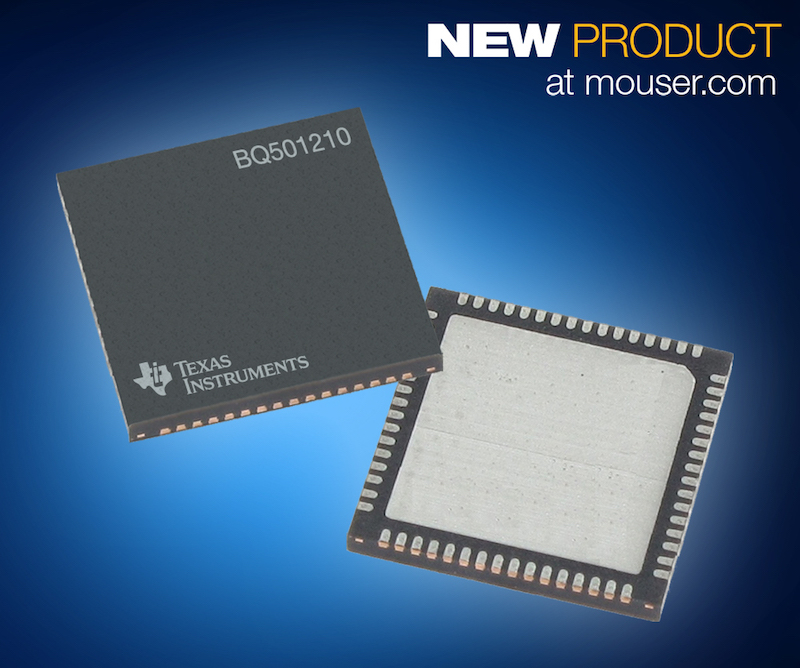

The bq501210 is available in a 64-pin, 9 × 9 mm VQFN package, and is supported by the bq501210EVM-756 evaluation module, a high-performance, easy-to-use development module for designing wireless power solutions. The bq501210EVM-756 provides all the basic functions of a Qi-compliant, wireless charger pad. The module's 19V input, single-coil transmitter enables designers to speed the development of end applications.

Texas Instruments 15W Qi-Certified bq501210 Wireless Power Transmitter

Mouser Electronics
