Revolutionizing Power Electronics: Silver Adhesive Pastes for Next-Gen Semiconductor Reliability and Thermal Performance

­As power electronics evolve with the rise of wide-bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN), the demand for advanced die bonding solutions becomes increasingly critical. Die bonding solutions enable power systems that operate at significantly higher switching frequencies, deliver higher power densities, and withstand extreme temperatures compared to traditional silicon-based devices. As a result, they are fueling rapid advancements across electric vehicles (EVs), renewable energy systems, industrial automation, aerospace, and power conversion technologies.

However, these performance gains also place tremendous new demands on device packaging. As switching speeds rise and heat densities increase, packaging materials must reliably dissipate heat and absorb mechanical stress without degrading over time. Traditional die-bonding materials, particularly high-temperature lead-based solders and conventional conductive silver pastes, are struggling to keep up.

These older materials often lack the elasticity, thermal conductivity, or long-term mechanical stability needed to support SiC and GaN devices operating above 200°C. Cracking, delamination, and thermal fatigue become more severe as thermal cycling intensifies, creating reliability challenges that threaten system performance in mission-critical applications.

This mismatch between device capability and packaging durability has accelerated the industry’s search for advanced materials that can sustain high thermal loads while maintaining long-term mechanical integrity. That’s where silver adhesive pastes come in, offering a fundamentally new approach to bonding high-performance dies to substrates.

Silver Adhesive Paste: A Next-Generation Die Bonding Solution

Silver adhesive pastes are emerging as a superior bonding alternative for high-temperature and high-power applications because they offer a combination of high thermal conductivity, strong electrical performance, and mechanical elasticity; a balance previous bonding materials have been unable to achieve.

These pastes create a low-resistance thermal path that dissipates heat more efficiently than many traditional bonding agents. At the same time, their viscoelastic properties allow them to absorb mechanical stress caused by thermal expansion mismatch between dies and substrates.

Importantly, silver adhesive pastes process at lower temperatures than solder-based methods, typically below 200°C, reducing thermal stress during assembly and enabling compatibility with temperature-sensitive semiconductor structures.

Advancing Performance Through Hybrid Sintering Materials

To meet increasingly stringent reliability requirements, engineers have developed a hybrid sintering silver paste that incorporates a special resin directly into the sintered silver network. Conventional sintered silver offers extraordinary thermal conductivity, but its firmness makes it vulnerable to delaminate especially under repeated thermal cycling. Resin-based adhesives, conversely, offer flexibility but lack sufficient heat dissipation for high-power applications.

The hybrid sintering approach delivers metallic silver pathways for superior heat dissipation, resin reinforcement for elasticity and stress absorption, improved adhesion strength to prevent die lift, and resistance to delamination during high-temperature cycling.

Over time, this combination dramatically reduces fatigue-induced failure, making hybrid pastes ideal for SiC and GaN devices that experience continuous temperature fluctuations and extreme load cycles.

Click image to enlarge

Figure 2: Cross-section schematics of die-attach adhesive bonding to a Lead frame

Thermal Conductivity and Reliability at Scale

Maintaining consistent thermal performance is mission-critical for high-power modules. Even slight inefficiencies in heat dissipation can create hotspots, accelerate device aging, or cause sudden device failure.

Silver adhesive pastes address this by delivering thermal conductivities above 100 W/m·K and low interfacial thermal resistance. They also provide stable heat spreading under load and elastic stress absorption to minimize thermal fatigue.

The ability to maintain thermal conductivity while also providing elasticity is key. As devices cycle between high load and idle, the mismatch in the coefficient of thermal expansion (CTE) between the semiconductor die and the metal substrate generates mechanical strain. Silver adhesive pastes minimize this strain through elastic stress absorption, dramatically reducing fatigue.

As a result, they support stable operation over millions of power cycles, making them ideal for automotive traction inverters, high-voltage industrial drives, and renewable energy converters, all environments where reliability and efficiency are non-negotiable.

Enabling High-Temperature and High-Power Applications

As industries adopt SiC and GaN devices to unlock higher efficiency and compact system designs, bonding materials must handle more intense thermal and mechanical loads.

SiC-based inverters and onboard chargers operate at high temperatures under constant vibration and thermal cycling. Silver adhesive pastes strengthen thermal pathways and enhance adhesion, improving system stability and reducing inverter failures.

Industrial Automation and Motor Drives

In industrial settings, motor drives and robotics systems operate for extended periods in high-temperature environments, often under constant or repetitive load. Silver adhesive pastes contribute to compact and efficient designs by maintaining strong adhesion and stable thermal performance even when devices are pushed to their limits. Their ability to maintain structural integrity over millions of power cycles ensures that industrial systems remain stable, reducing disruption and allowing for predictive maintenance strategies.

Renewable Energy

Solar and wind power applications introduce unique thermal challenges: solar inverters experience temperature spikes during peak sunlight hours, while wind turbine power converters must perform in cold, high-vibration environments. Silver adhesive pastes ensure stable electrical and thermal interfaces, preventing performance degradation caused by weather-related temperature cycling. Their high thermal conductivity improves overall system efficiency, while their elasticity protects against delamination in fluctuating outdoor conditions.

Aerospace and Defense

Aerospace and defense systems push power electronics into some of the harshest environments, from extreme altitude temperature swings to intense vibration during liftoff or maneuvering. The mechanical toughness and high-temperature capability of silver adhesive pastes provide a strong advantage here. Their ability to maintain bond-line integrity under severe mechanical and thermal stresses helps ensure mission-critical reliability.

Click image to enlarge

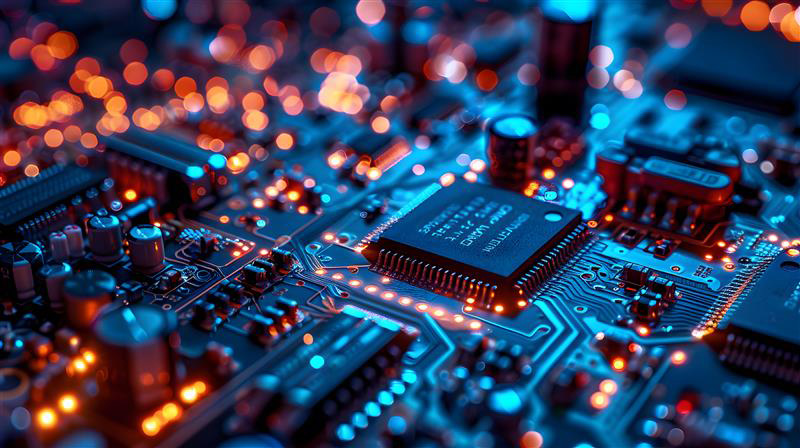

Figure 3: Circuit board featuring high-power semiconductor components where silver adhesive pastes support thermal and mechanical reliability

These varied applications highlight why high-temperature bonding materials are increasingly viewed as a foundational technology in the shift toward electrification and advanced power systems.

Supporting the Shift Toward Sustainable Manufacturing

The transition to more sustainable manufacturing practices is becoming a central focus across industries, and the materials used in semiconductor packaging play a key role in helping companies meet environmental, regulatory, and resource-efficiency goals. Silver adhesive pastes support this shift in several meaningful ways.

Eliminating Lead-Based Solders

Traditional Pb-based solders, still used in some high-temperature applications, pose environmental and health risks that many global regulations aim to minimize. Because silver adhesive pastes offer strong thermal and mechanical performance without incorporating hazardous substances, they align with the goals of RoHS, REACH, and other environmental standards. This shift supports cleaner manufacturing processes and safer end-of-life handling.

Lower Energy Consumption During Manufacturing

Compared to high temperature reflow soldering, silver adhesive pastes cure at lower temperatures, which significantly reduces energy consumption during assembly. Lower processing temperatures also reduce thermal stress on components, which can improve yields and reduce waste from rework or failures during production. Manufacturers working toward carbon reduction targets benefit from these energy savings across high-volume production lines.

Recyclability and Resource Efficiency

Silver is a fully recyclable precious metal, and advancements in material recovery allow manufacturers to reclaim silver from production scrap, unused paste, and end-of-life power modules. TANAKA has more than 140 years of experience working with precious metals, including long-standing technical expertise in both advanced material development and precious metal recycling.Incorporating recyclable materials into high-volume manufacturing supports circular economy initiatives, helping reduce dependency on raw material extraction and minimizing waste. This is especially relevant as the semiconductor industry experiences rising demand for precious metals in advanced packaging, and companies seek to stabilize supply chains through closed-loop recovery systems.

Extending Device and System Lifetimes

Improved reliability in die-attach materials reduces premature failures, meaning fewer replacements and lower overall material consumption over the lifetime of a system. For EVs, industrial drives, and renewable energy installations, where modules may be deployed for a decade or longer, using bonding materials that enhance long-term reliability can have a measurable environmental impact by reducing waste and lowering maintenance cycles.

Alignment with Corporate ESG Strategies

As manufacturers adopt more comprehensive ESG frameworks, materials that contribute to emissions reduction, resource conservation, and safer production environments become essential. Silver adhesive pastes provide a practical, measurable pathway for companies looking to modernize their power electronics while meeting stringent sustainability commitments. Quality silver adhesive paste is fully lead-free and PFAS-free.

Their use reflects a broader industry trend: designing high-performance systems with environmental responsibility built in at the materials level.

A Foundation for the Future of Power Devices

As the global demand for high-performance semiconductors continues to grow, the materials used to bond, package, and protect them must evolve to keep pace. Silver adhesive pastes, particularly hybrid sintering formulations, offer a compelling solution that addresses the thermal, mechanical, and environmental challenges facing next-generation power electronics.

By combining exceptional thermal conductivity, mechanical stress absorption, high-temperature durability, and lead-free sustainability, silver adhesive pastes lay the groundwork for more reliable, efficient, and responsible power systems.

With innovations in materials science accelerating and WBG semiconductors becoming the industry standard, adhesive technologies like these will not only support but enable the next wave of electrification and high-performance power device design.

TANAKA Precious Metals
